Sine WavE Frequency Generator

The Sine Wave Frequency Generator from NetTimeLogic is a time and frequency aligned sine wave frequency generator allowing any frequency to be generated between 1Hz and 200kHz adjustable in 1Hz steps. It uses NetTimeLogic's Adjustable Clock core as source for source synchronous frequency generation. It provides either a parallel DAC interface or a serial highly configurable SPI interface to access a DAC.

The IP core comes with a Linux Driver (the same driver as for the Frequency Generator)

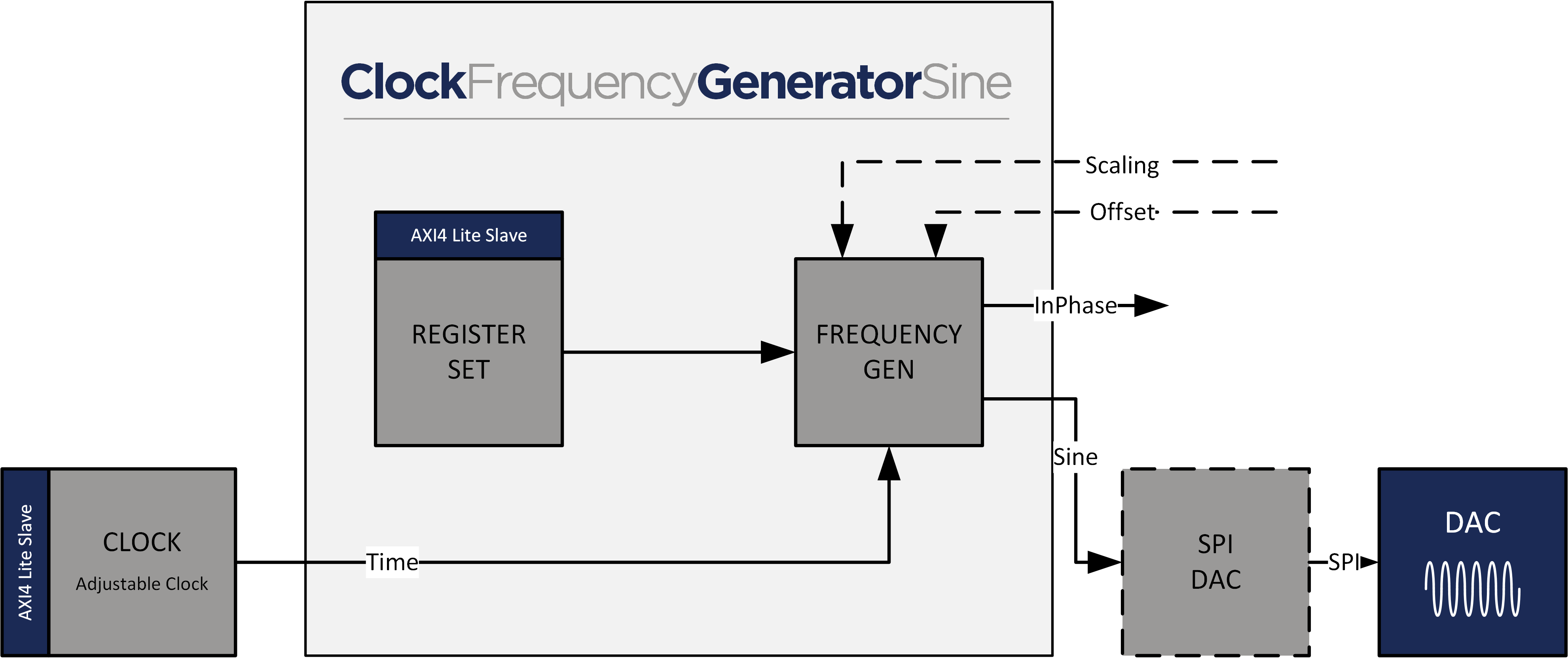

Block Diagram

Features

• Configurable frequency signal generation (1-200kHz (depends on DAC sampling rate))
• Configurable polarity (positive or negative zero crossing and PPS boundary)
• Output delay compensation
• Alignment of the frequency generator to an input time (frequency and phase)
• Automatic realigning of the frequency generator on time jumps and frequency changes
• Continuous generation until disabled
• Configurable DAC Sample width
• Configurable DAC Sampling rate
• Optional DAC Sample scaling
• Optional DAC Sample offset
• SPI DAC Controller
• AXI4Lite register set or static configuration

Licensing & Pricing

There are different licensing possibilities (more info here). All prices are in US Dollars without VAT, all prices are one-time fees, no royalties apply:

• Project Source Code:  1600$
• Site Source Code: 2900$

All prices are non-binding estimates – please use the contact form for definitive pricing and lead-time information.

Downloads

Evaluation binaries available for Digilent's Arty and Trenz's Cyclone-10LP-RefKit development boards or as Modelsim(R) pre-compiled libraries => contact us for free access
