FrequencY Generator

The Frequency Generator from NetTimeLogic is a clock aligned frequency generator allowing any frequency to be generated between 1Hz and 10MHz adjustable in 1Hz steps. It uses NetTimeLogic's Adjustable Clock core as source for source synchronous frequency generation.

The IP core comes with a Linux Driver

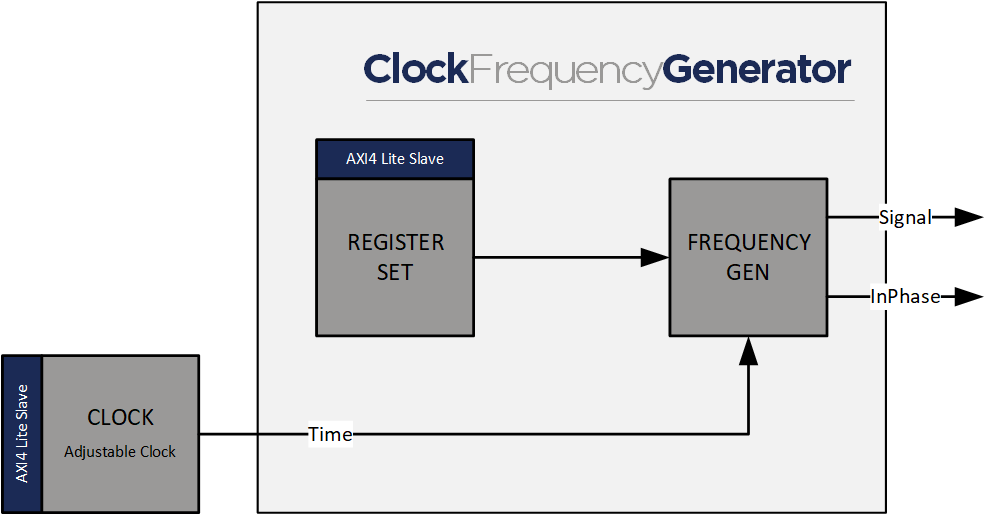

Block Diagram

Features

  • Configurable frequency signal generation (0-10MHz) in 1Hz steps
  • Configurable polarity
  • Output delay compensation
  • Alignment of the frequency generator to an input time
  • Automatic realigning of the frequency generator on time jumps
  • Continuous generation until disabled
  • AXI4Lite register set or static configuration
  • Generator resolution with 50 MHz system clock: 20ns
  • Generator high-resolution with 250 MHz clock: 4ns

Licensing & Pricing

There are different licensing possibilities (more info here). All prices are in US Dollars without VAT, all prices are one-time fees, no royalties apply:

  • Project Source Code:  1100$
  • Site Source Code: 2000$

All prices are non-binding estimates – please use the contact form for definitive pricing and lead-time information.

Downloads

Evaluation binaries available for Digilent's Arty and Trenz's Cyclone-10LP-RefKit development boards or as Modelsim(R) precompiled libraries => contact us for free access
