AIONYX Hive

AIONYX Hive devices are NetTimeLogic’s system-level products, built on the AIONYX platform and powered by NetTimeLogic’s field-proven FPGA IP cores. They are designed for laboratory use, testing, and evaluation. They also serve as a flexible platform for custom time synchronization solutions, including PTP (IEEE1588), NTP, GNSS timing, and time distribution.

The platform is highly modular, allowing you to configure a system that matches your requirements. It is also designed for easy expansion with additional modules and IP cores, enabling new features and capabilities over time.


Check out our Shop for example AIONYX Hive Product Configurations and the available Modules => click here

AIONYX Hive-S

The AIONYX Hive-S is a very compact, highly modular device designed for a large variety of applications. It combines outstanding performance with low power consumption and an affordable price. Its FPGA-based architecture, featuring field-proven NetTimeLogic IP Cores, ensures exceptional modularity to meet diverse customer requirements, making it ideal for laboratory, testing and measurement applications.

With customizable configurations, the AIONYX Hive-S provides maximum flexibility and adaptability, featuring up to four extension slots for AIONYX PM Modules that can accommodate GNSS Receivers, Clock/RTC Modules, and a variety of Input/Output Modules.

Hive_S_Factsheet.pdf Hive_S_Factsheet.pdf
Size : 1385.156 Kb
Type : pdf

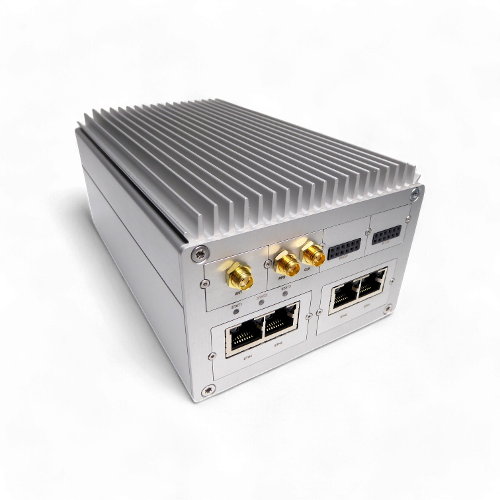

AIONYX Hive-M

The AIONYX Hive-M is a compact, highly modular device engineered for high-performance applications. Its advanced architecture, combining FPGA technology with 4 x ARM Cortex-A53 processors and field-proven NetTimeLogic IP Cores, offers exceptional modularity to meet a wide range of customer requirements. This makes it an ideal solution for laboratory environments, testing, measurement and high-performance networking applications.

Designed with customizable configurations, the AIONYX Hive-M delivers maximum flexibility and adaptability. It includes up to two performance slots for AIONYX ZM Modules and four extension slots for AIONYX PM Modules, which support a large range of functionalities, including GNSS Receivers, Clock/RTC Modules, and a variety of Input/Output Modules.

Additionaly the AIONYX Hive-M can support SCION ClockWire.

Hive_M_Factsheet.pdf Hive_M_Factsheet.pdf
Size : 1648.498 Kb
Type : pdf

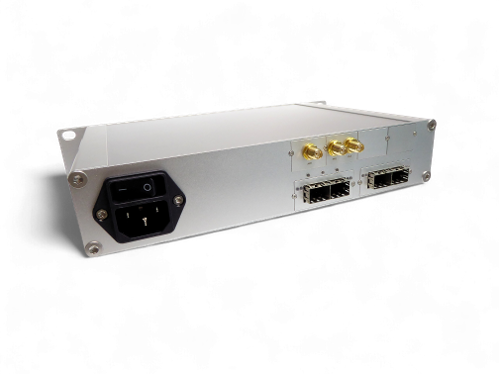

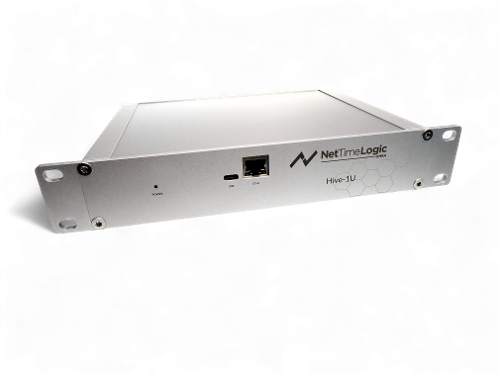

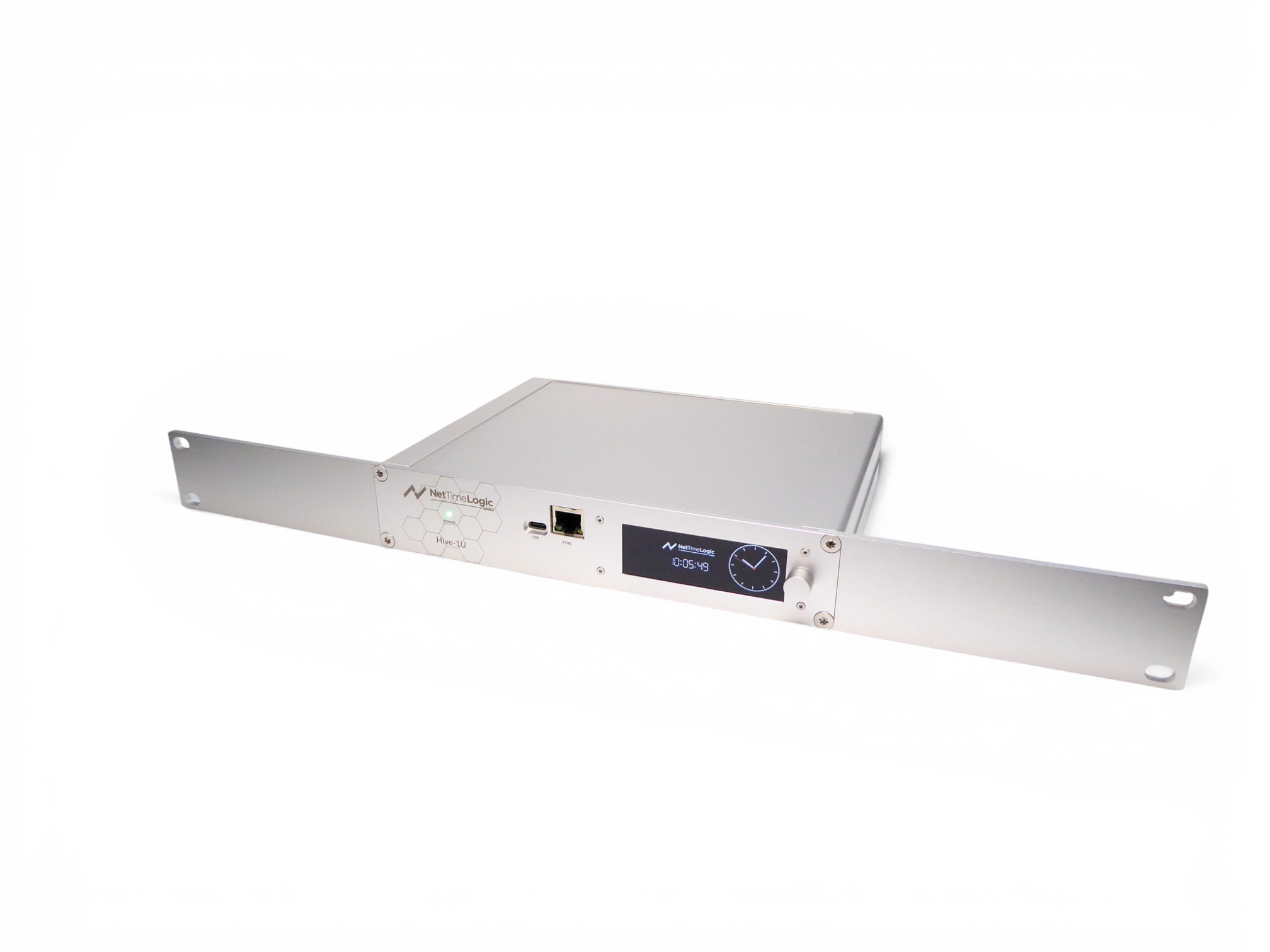

AIONYX Hive-1U

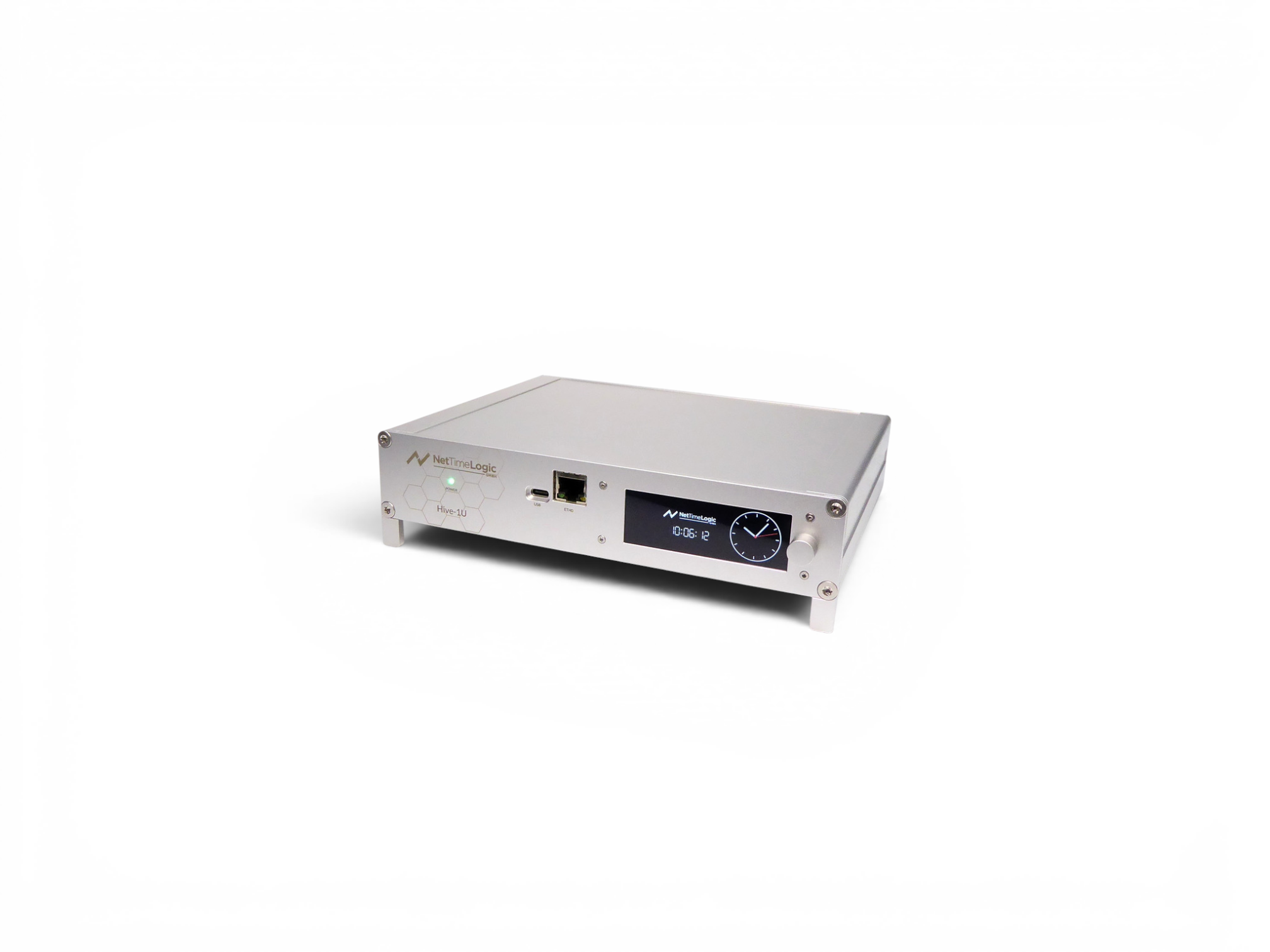

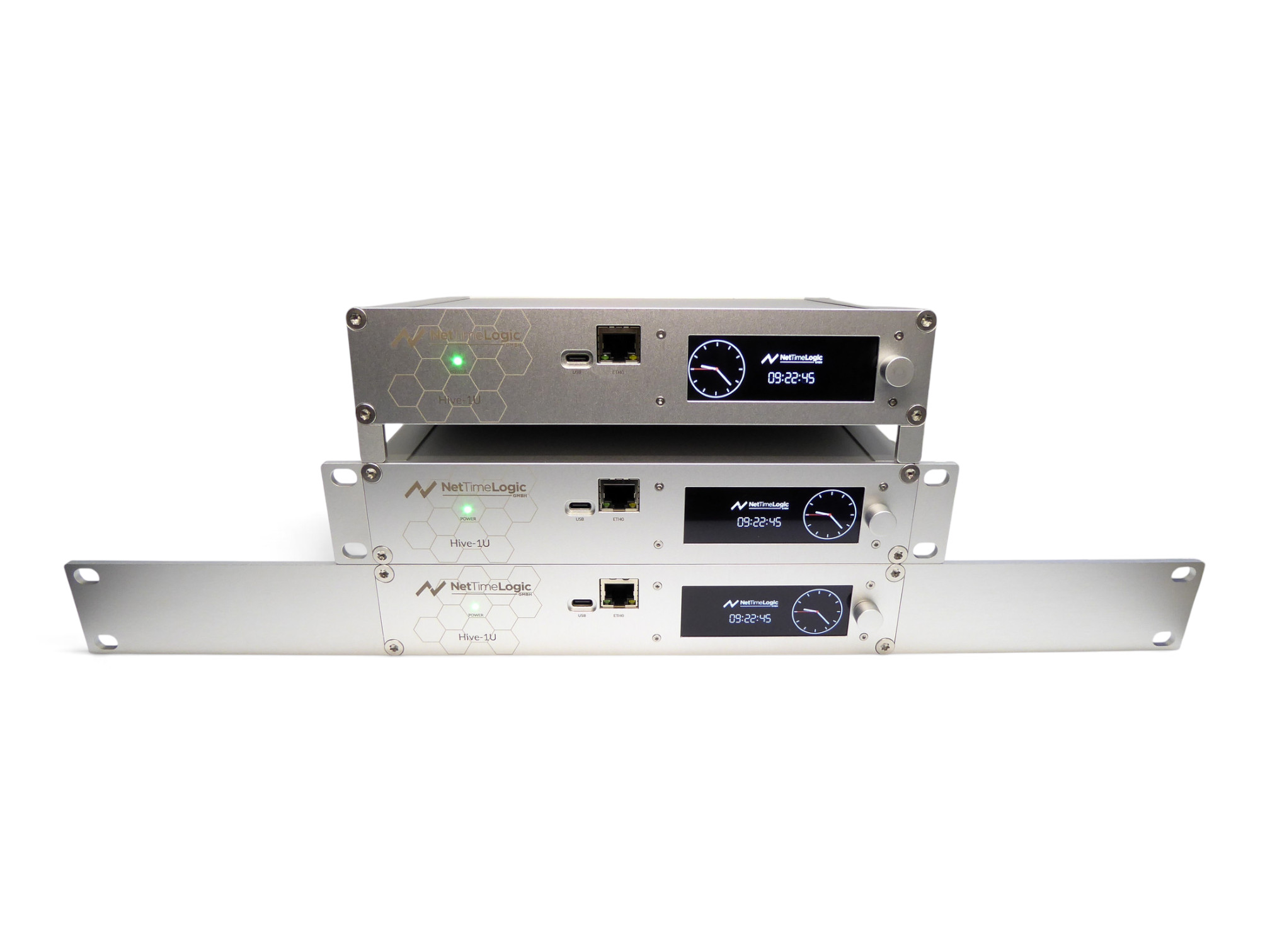

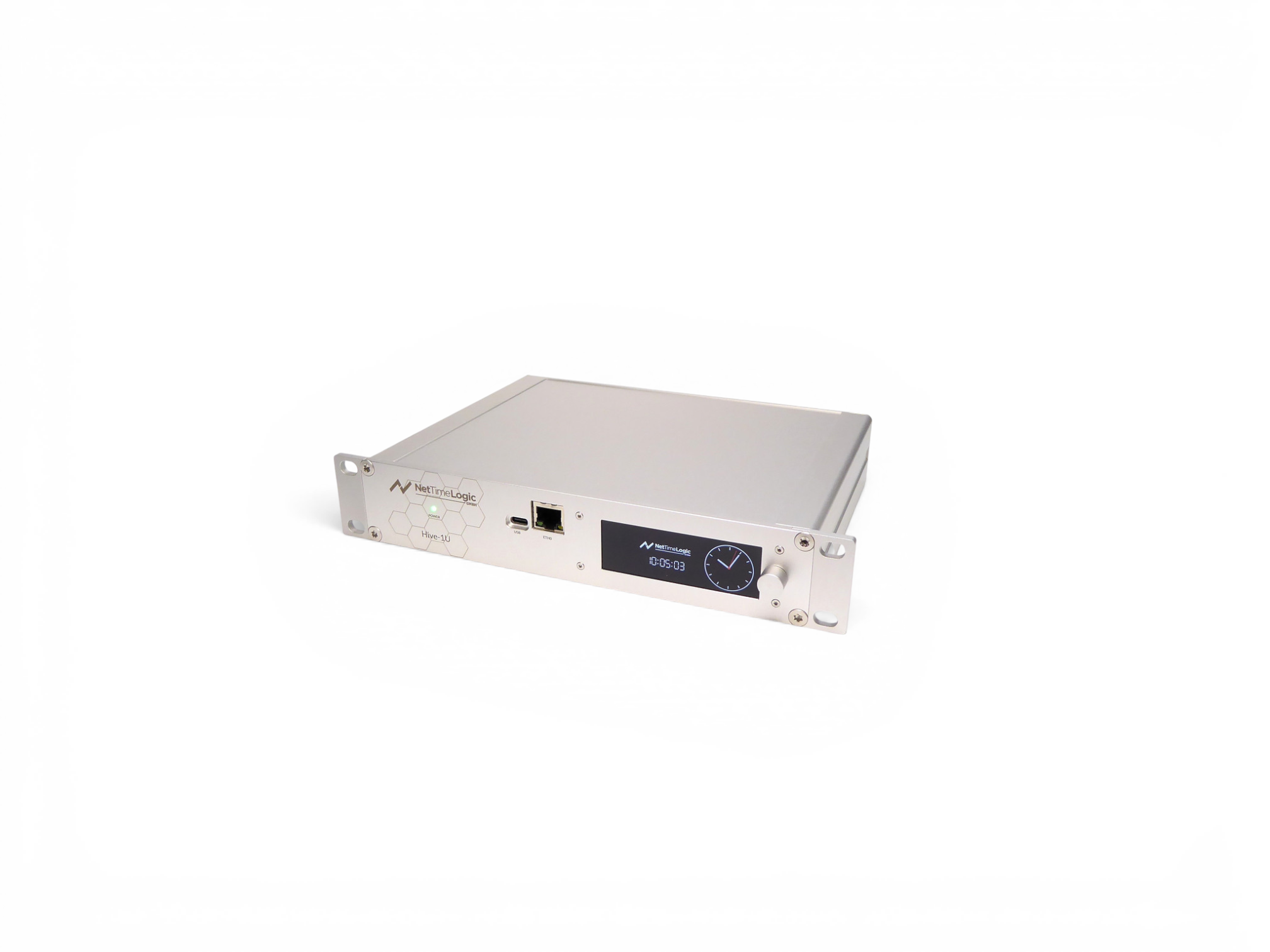

The AIONYX Hive-1U is a compact, highly modular synchronization platform available as both a 1U rackmount device and a convenient tabletop solution. The rackmount version supports both 10-inch and 19-inch installations using flexible mounting adapters, while the tabletop version is ideal for laboratory environments, development, and desktop applications.

Designed with customizable configurations, the AIONYX Hive-1U delivers maximum flexibility and adaptability. It includes up to two performance slots for AIONYX ZM Modules and four extension slots for AIONYX PM Modules, which support a large range of functionalities, including GNSS Receivers, Clock/RTC Modules, and a variety of Input/Output Modules.

For enhanced usability, the Hive-1U can optionally be equipped with the Universal Display Manager (UDM), a fully graphical display that provides instant access to device status, synchronization state, and key system information directly on the device, without requiring a web interface or external software

Additionaly, the AIONYXHive-1U can support SCION ClockWire.

Hive_1U_Factsheet.pdf Hive_1U_Factsheet.pdf
Size : 2618.68 Kb
Type : pdf

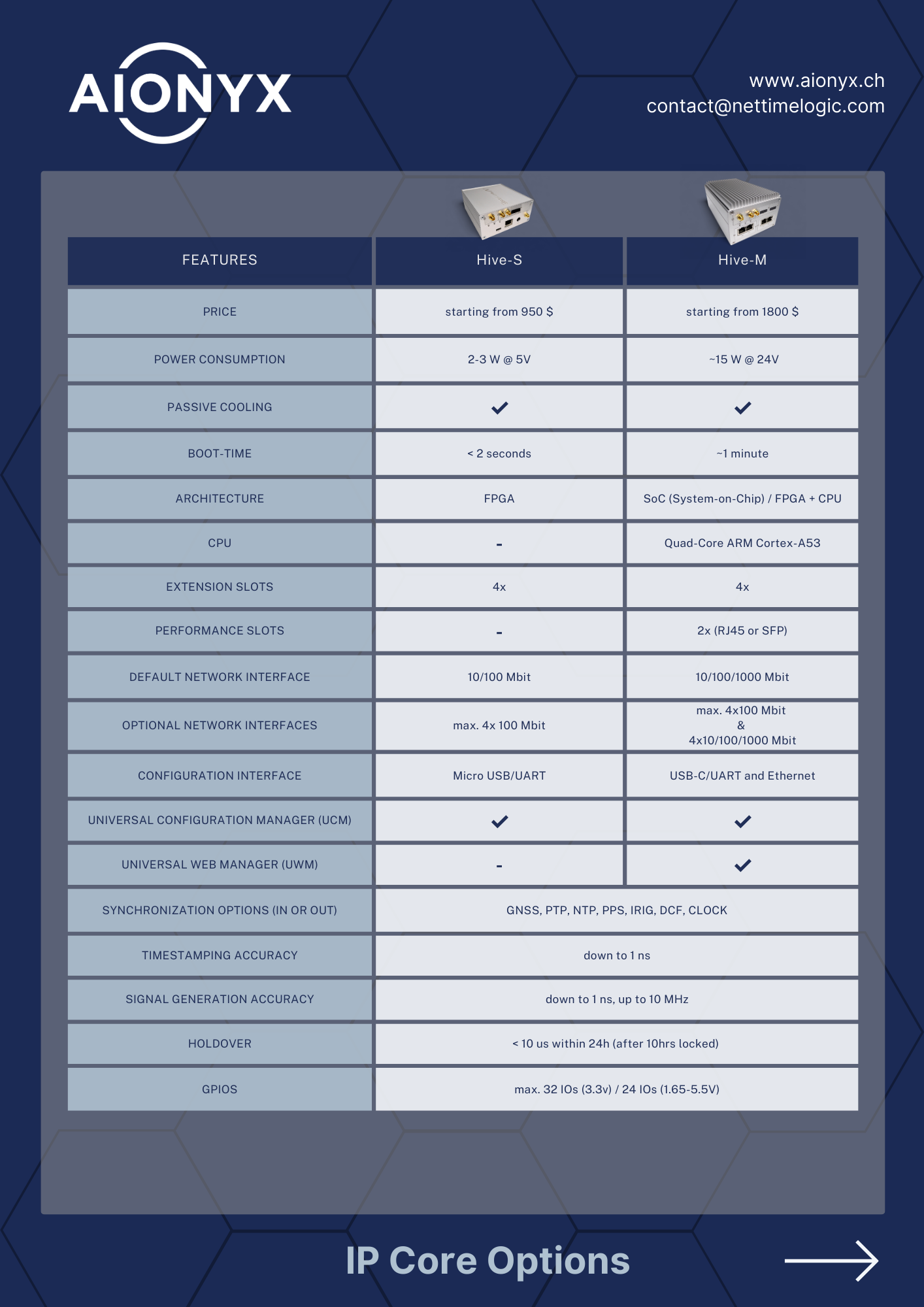

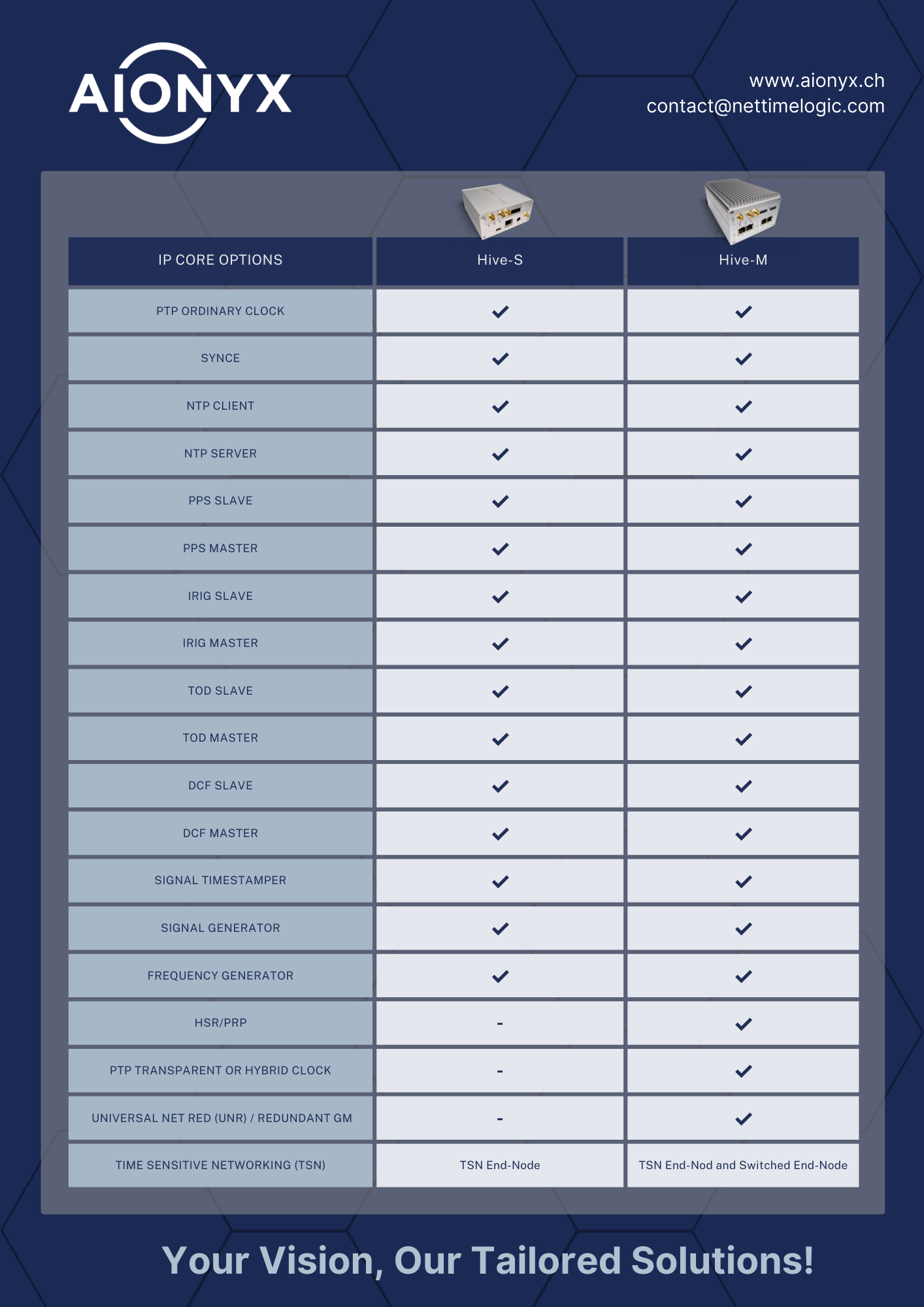

Feature Comparison

AIONYX Hive Comparison.pdf AIONYX Hive Comparison.pdf
Size : 233.973 Kb
Type : pdf

Order Now!

Check out our Shop for the available configurations or contact us if you would like a specific configuration.
