RTC Master

NetTimeLogic’s RTC Master Clock is a full hardware (FPGA) only implementation of a synchronization core allowing to read and write a I2C Realtime Clock (RTC) like the DS1307 or MCP7941x. Access to the RTC is done from the FPGA without software interaction. It allows storing and recovering time from a non-volatile storage. Reading and Writing is aligned with the Square Wave Output of the RTC. On a read, a nanosecond part is calculated to achieve maximum accuracy. Conversion from/to 32bit second, 32bit nanosecond time format from/to the date format used by the RTC is completely done in HW. This allows running RTC synchronization completely independent and standalone from the user application. The core can be configured either by signals or by an AXI4Light-Slave Register interface.

All calculations and corrections are implemented completely in HW.

* (Picture source Digilent Inc.)

Block Diagram



Synchronization Accuracy

RTC sync

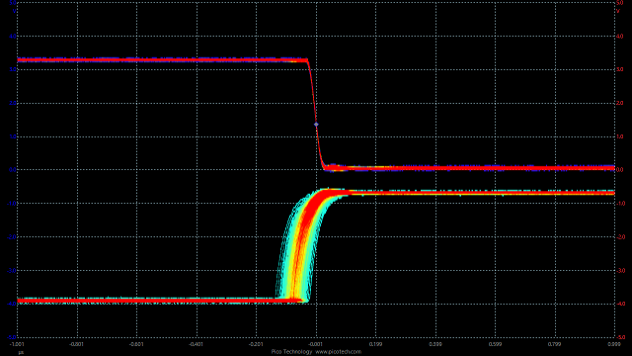

200ns per division on oscilloscope

The synchronization accuracy achieved with a 50MHz oscillator is around +/-100ns

Features

  • Real Time Clock (RTC) Master Clock
  • Supports DS1307 and MCP7941x (and compatible) Real Time Clocks (RTC) and self-configuration at startup
  • Allows to synchronize the internal clock to the RTC and vise versa
  • Built-in I2C controller with configurable baud rate
  • Aligned writing and reading of time with the RTC PPS
  • Hardware time conversion from Time of Day format (hh:mm:ss dd:mm:yyyy) into seconds since midnight 1.1.1970 (Linux, TAI, PTP)
  • PI Servo Loop in hardware
  • In combination with a Adjustable Counter Clock from NetTimeLogic: synchronization accuracy: +/- 100ns
  • AXI4 Light register set or static configuration

Licensing & Pricing

There are different licensing possibilities (more info here). All prices are in US Dollars without VAT, all prices are one-time fees, no royalties apply:

  • Project Source Code:  3300$
  • Site Source Code: 6000$

All prices are non-binding estimates – please use the contact form for definitive pricing and lead-time information.

Downloads

Evaluation binaries available for Digilent's Arty and Terasic's SoCKit development boards or as Modelsim(R) precompiled libraries => contact us for free access

Rtc_Master_Flyer.pdf Rtc_Master_Flyer.pdf
Size : 117.369 Kb
Type : pdf
Rtc_Master_ReferenceManual.pdf Rtc_Master_ReferenceManual.pdf
Size : 896.516 Kb
Type : pdf
